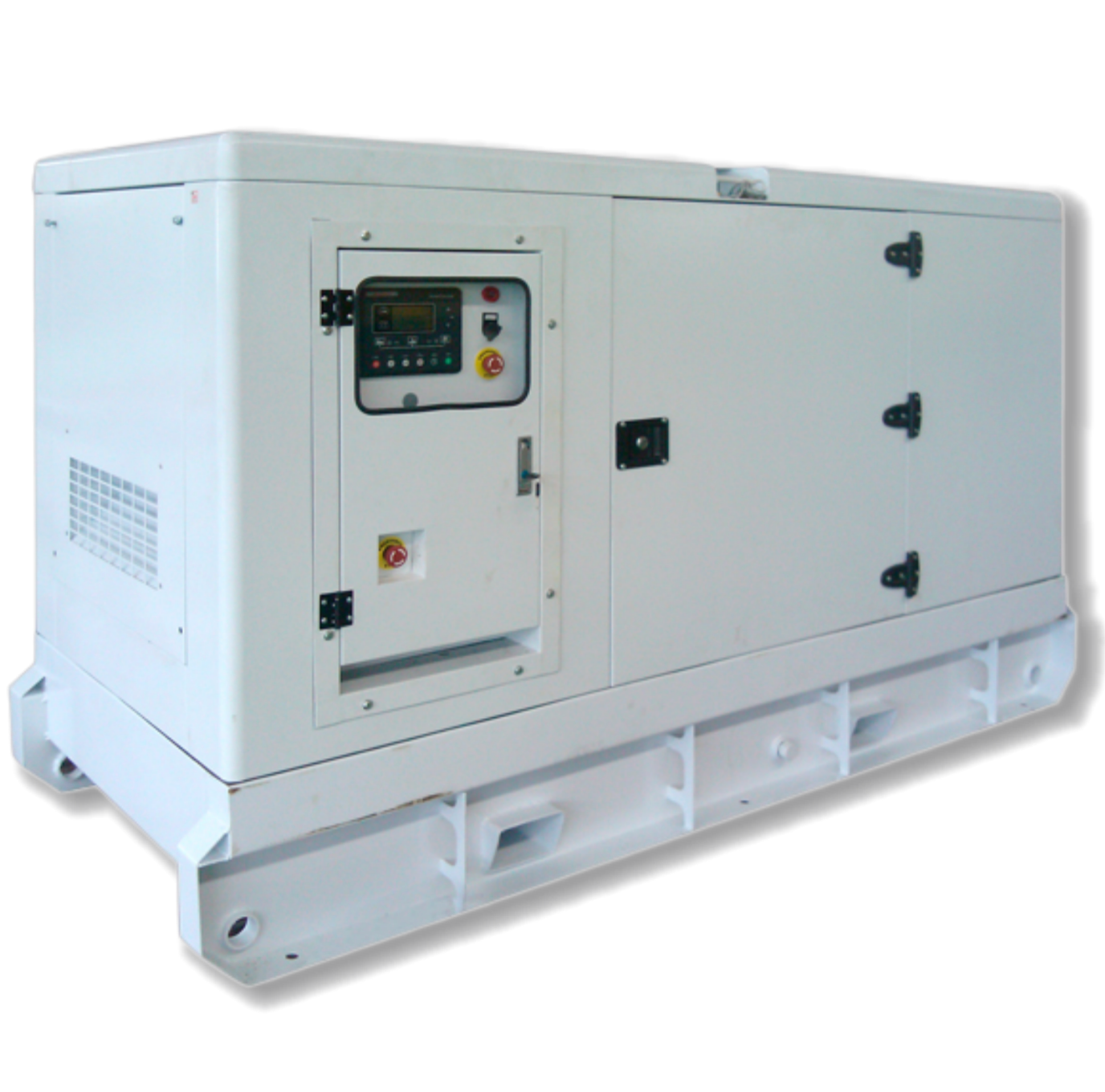

| Genset Model | Silent Type | CU33GFS | |
| Standby Power (KW/KVA) | 26.4/33 | ||
| Prime Power(KW/kVA) | 24/30 | ||
| CUMMINS Diesel Engine | Model | 4BT3.9-G2 | |
| Type | Vertical in line、4-Strokes、Water cooled | ||
| Rated Power(kW) | 36 | ||
| Aspiration | TURBO | ||
| No.of Cylinder | 4 | ||
| Bore x Stroke(mm) | 102x120 | ||
| Displacement | 3.9 | ||
| Compression Ratio | 18:1 | ||
| Noise Level (dBA) | 75 | ||
| Machanical Governor Rate | ≦5% | ||
| Exhaust Temperature(°C) | 463 | ||
| Total coolant capacity(L) | 7.2 | ||
| Lub oil Capacity(L) | 10.9 | ||
| Rated Fuel Consumption75% (L/h) | 7.3 | ||
| STAMFORD technology Alternator | Model | BC184GS | |
| Power(kW/kVA) | 24/30 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless 100% copper | ||
| Controller | Smartgen brand | HGM6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 2100 | |
| Width | 950 | ||
| Height | 1210 | ||
| Gross Weight(kg) | 850 | ||
| With ,battery, battery charger,shock absorber , manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
